Vertical Multistage In-Line Pump – Calgonpump VR Series

Features of the Calgon Vertical Multistage Pump

DESCRIPTION

The Calgon Vertical In Line Multistage Pump VR Series is designed to provide reliable and efficient pumping for various applications. Calgon Vertical Multistage In Line pump is of compact design with hydraulic parts made of stainless steel material for better corrosion-resistant.

Vertical Multistage In Line pump unique design ensuring the pump is quiet in operation, easy to service with no compromise on quality and reliability. The extensive model range can adequately satisfy the most varied pumping requirement.

 APPLICATIONS

• Booster Pump
• Transfer Pump

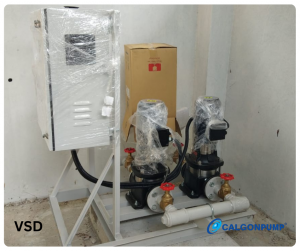

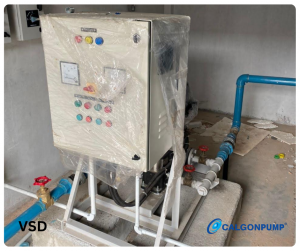

• Variable Speed Booster System
• Water Supply
• Fire Fighting
• Irrigation

TECHNICAL DATA

• Low viscosity, non-inflammable and non-explosive liquids not containing solid particles or fibers. The liquids must not chemically attack the pump materials. When pumping liquids with a density or viscosity is higher than that of water, a motor with a higher output power rating shall be used
• Liquid temperature: -20°C ~+120°C
• Flow ranges: 0.7-240 m³/h
• Liquid pH value: 4 – 10
• Max. ambient temperature: +40°C
• Max. operating pressure: 33 bar
• Altitude: up to 1000 m

Motor

• IE 2 motor (IE 3 motor optional)
• Totally enclosed & fan-cooled
• Protection class: IP55
• Standard voltage: 415V/50HZ/3PH

CERTIFICATE

• SPAN
