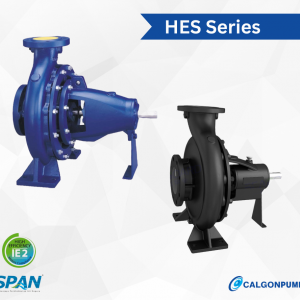

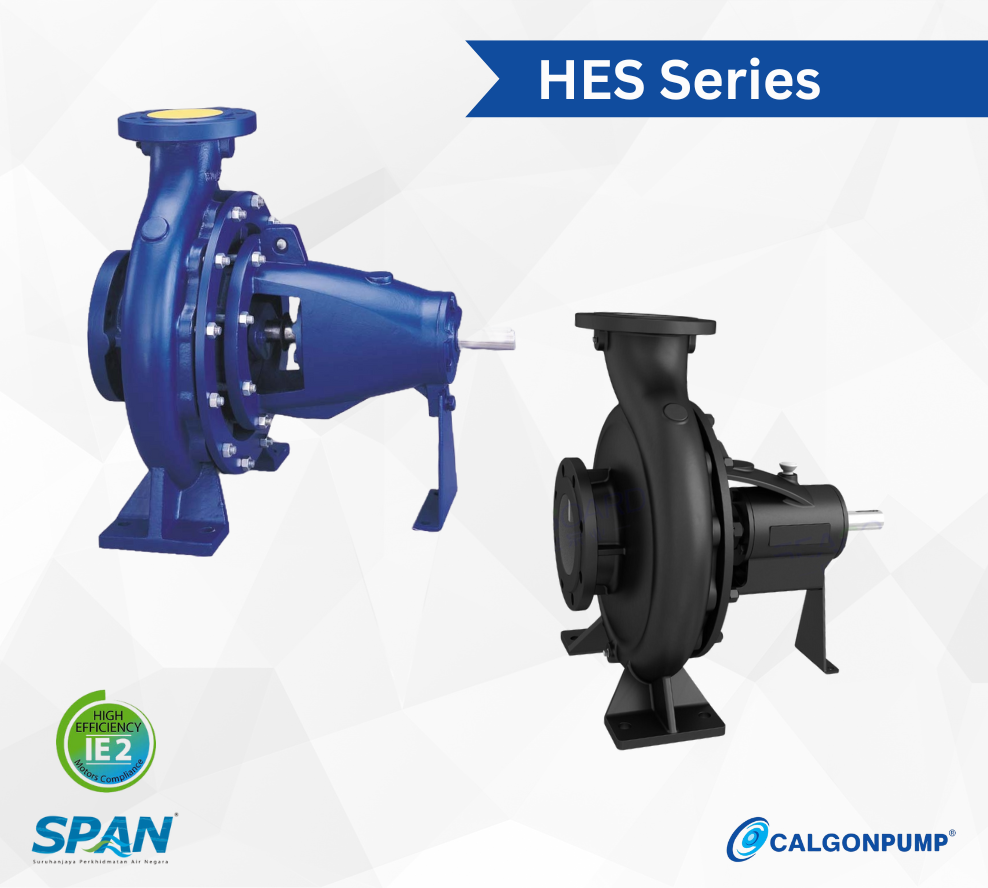

End Suction Pump – Calgonpump HES Series
Product Code: HES
Stock: Available
Download Our Catalogue
Product Description
Why Choose Calgon End Suction Pump
An End Suction Pump is a single-stage, horizontal pump widely used for a variety of water transfer and circulation applications. Known for its compact design and reliable performance, the pump features a suction inlet on one side and a discharge outlet on the top. These pumps are highly versatile and can handle both clean and slightly contaminated liquids, making them suitable for domestic, commercial, and industrial use.
End suction pumps are easy to install and maintain, with a back pull-out design that allows servicing without disturbing the pipe connections. Engineered with high-quality materials, they ensure durability and long service life even under demanding conditions.
APPLICATIONS
- General Industries
- Water Supply
- Power Plant
- Drainage Pumping Station
- Fire Fighting
- HVAC (Chilled Water / Condenser Water Pump)
TECHNICAL DATA
- Max Flow Rate: Up to 1,500 m³/h
- Max Head: Up to 150 m
- Inlet/Outlet Size: DN 32–DN 300
- Operating Temperature: -10°C to +110°C
- Working Pressure: Up to 21 bar
- Motor Efficiency: IE 2 – IE 3
- IP 55 / Class F
- Power: 415V/50HZ/3PH
** Bigger range is available upon request
Materials of Construction
-
Casing: Cast Iron / Stainless Steel
-
Impeller: Bronze / Cast Iron / Stainless Steel
-
Shaft: Carbon Steel / Stainless Steel
-
Seal: Mechanical Seal / Gland Packing
-
Bearing Housing: Cast Iron
CERTIFICATE
Brand WE HAVE
PROJECT REFERENCE

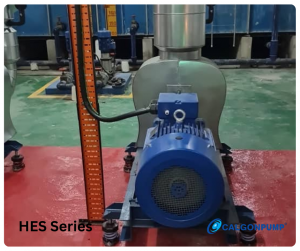

End Suction Pump (Condenser Water Pump)

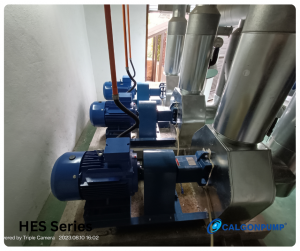

End Suction Pump (Chilled Water Pump)
FAQ
Q1: What applications are End Suction Pump suitable for?
It is suitable for water supply and distribution, Industrial processes and HVAC systems such as chilled water and condenser water.
Q2: Calgon vertical multistage pumps warranty?
1 year general warranty for manufacturer defect.
Q3: How do I calculate the correct pump size for my project?
Our technical team can assist you by considering factors like flow rate, pressure, and application requirements to determine the ideal pump size.
Q4: What is the difference between an End Suction Pump and a Split Casing Pump?
End Suction Pumps are compact and suitable for small-scale applications, while Split Casing Pumps are designed for high flow rates and industrial systems like chilled and condenser water.
Family Curve

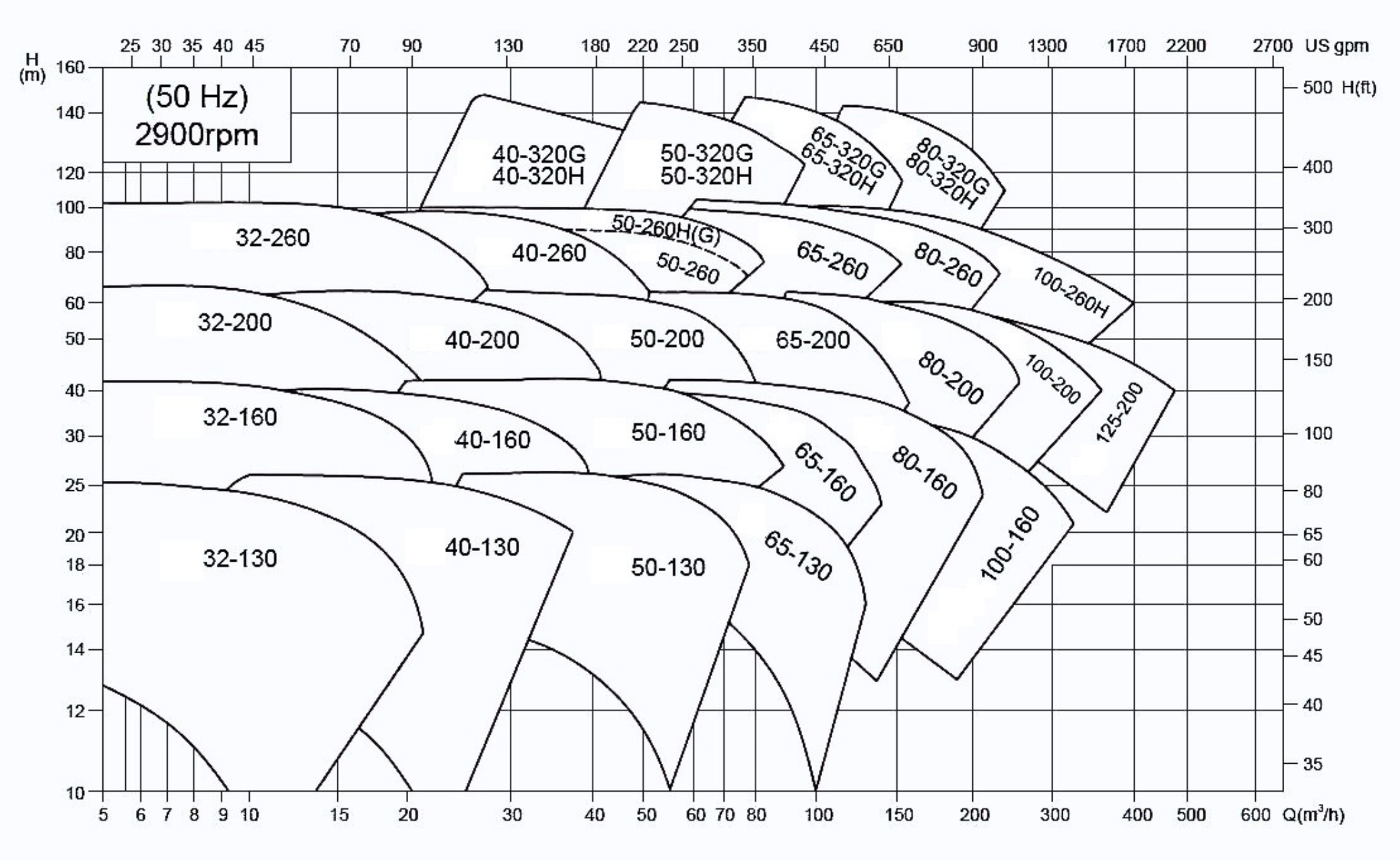

Calgonpump End Suction 2pole Curve

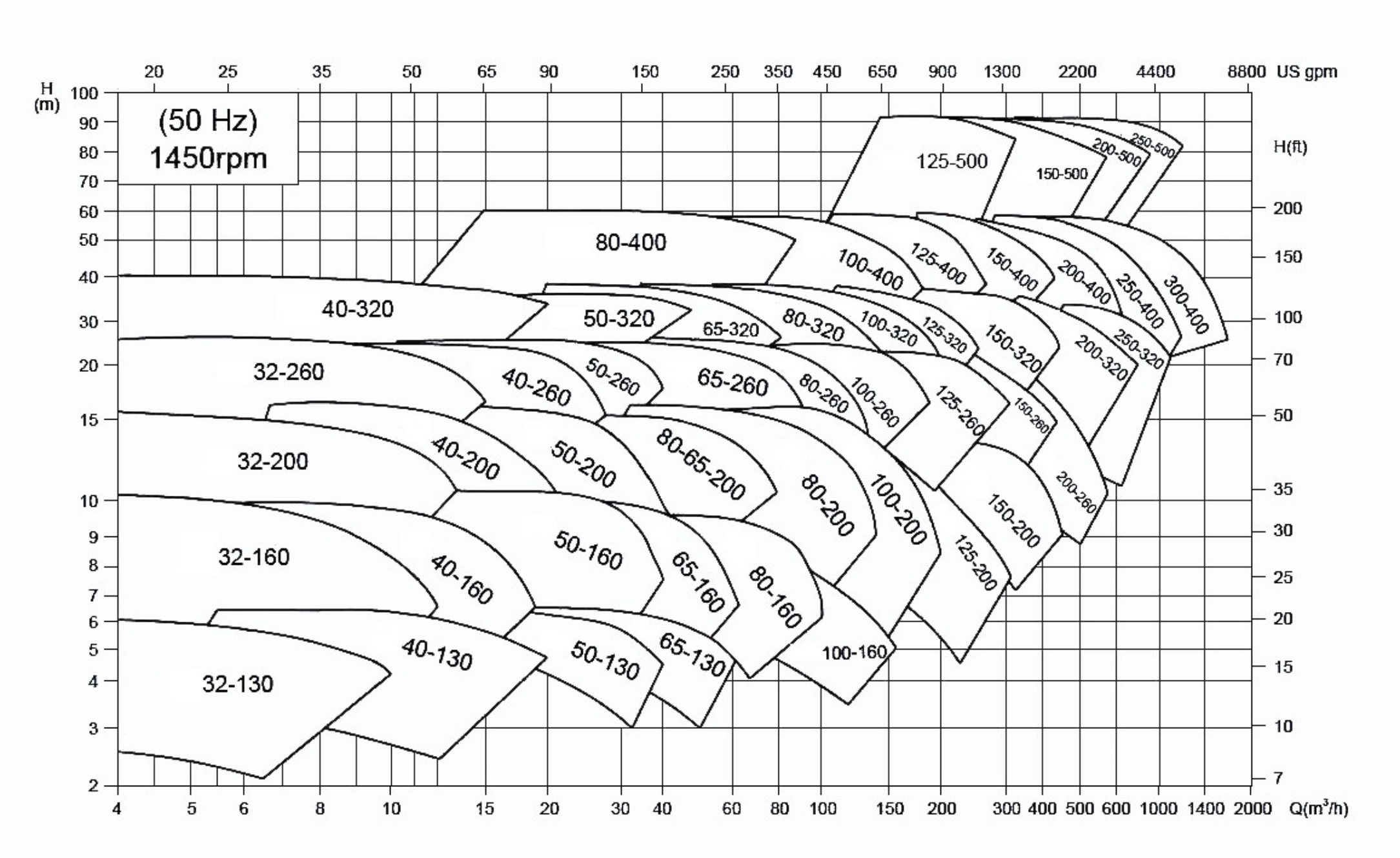

Calgonpump End Suction 4pole Curve
